High Power Lighting LED Driver

S6 600W Series

S6-600W series is specially designed for sports lighting and industrial lighting applications. It is constant current LED driver that operates from 220-480Vac with Dali-2 programming dimming function. This Rectangle integrated structure enables it to have a better heat dissipation cooler, significantly improving reliability and extending product life, the better thermal design and high efficiency enable the driver to operate with high reliability, and extending product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Power Level：600W	Current Range：1.16~3.00A	Surge：DM6KV, CM10KV
IP Rating：IP66, IK08	Dimming：DMX512/DALI-2

S6 1200W Series

Data Sheet

S6 series is specially designed for sports Lighting and industrial lighting applications. It is constant current LED driver that operates from 220-400Vac with DMX programming dimming function. This Rectangle integrated structure enables it to have a better heat dissipation cooler, significantly improving reliability and extending product life. To ensure trouble free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. The better thermal design and high efficiency enable the driver to operate with high reliability, and extending product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Power Level：1200W	Current Range：0.18~1.80A	Surge：DM10KV, CM10KV
IP Rating：IP66, IK08	Dimming：DMX512/DALI-2

S6 1500W Series

Data Sheet

Power Level：1500W	Current Range：0.14~1.40A	Surge：DM10KV, CM10KV
IP Rating：IP66, IK08	Dimming：DMX512/DALI-2

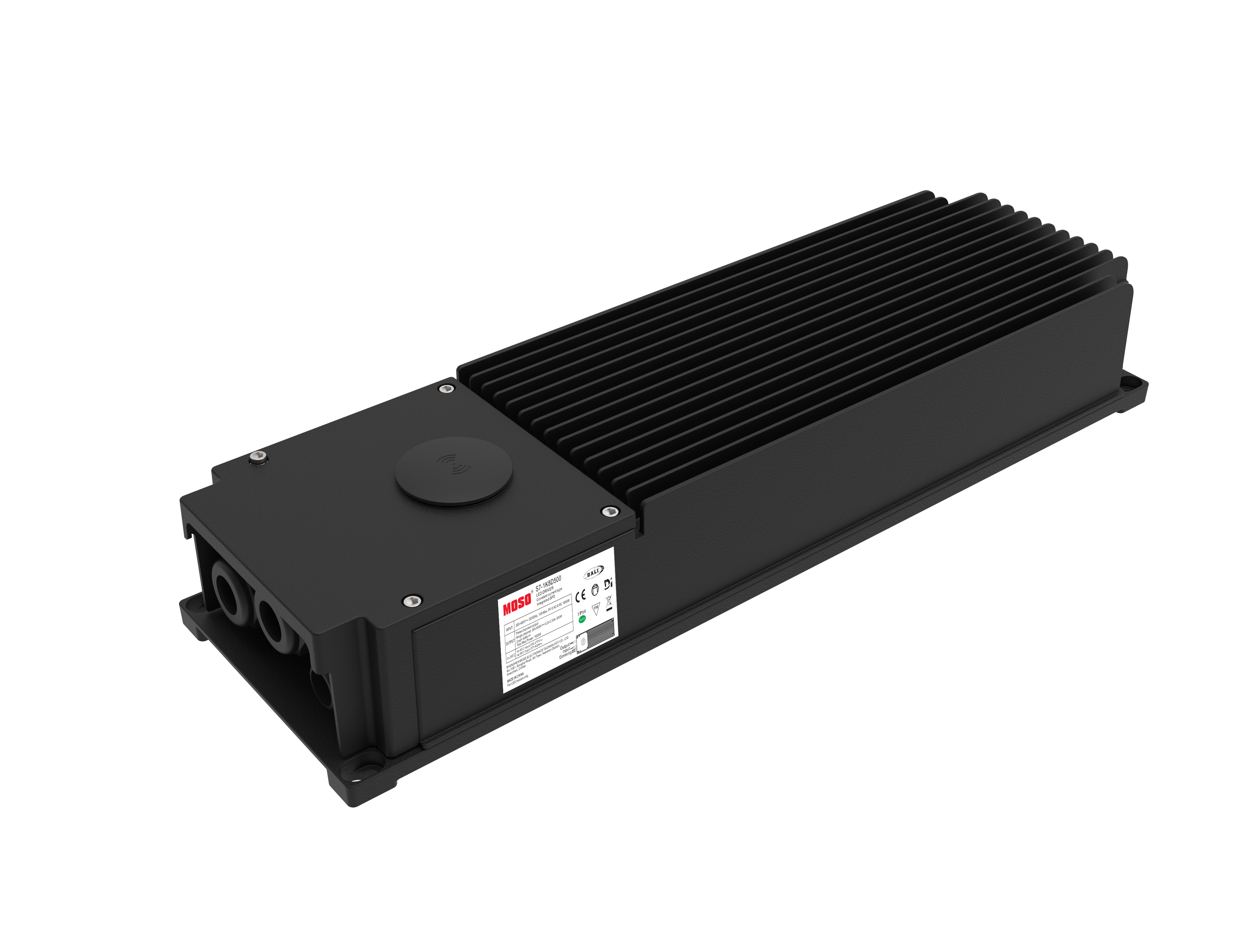

S6 1800W Series

Data Sheet

Power Level：1800W	Current Range：0.18~1.80A	Surge：DM10KV, CM10KV
IP Rating：IP66, IK08	Dimming：DMX512/DALI-2

S6 880W Series

Data Sheet

S6-880Y440 series is specially designed for sports Lighting and industrial lighting applications. It is constant current LED driver that operates from 220-480Vac with DMX512/DALI-2 programming dimming function. This Rectangle integrated structure enables it to have a better heat dissipation cooler, significantly improving reliability and extending product life. To ensure trouble free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature. The better thermal design and high efficiency enable the driver to operate with high reliability, and extending product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Power Level：880W	Current Range：0.36~3.60A	Surge：DM10KV, CM10KV
IP Rating：IP66, IK08	Dimming：DMX512/DALI-2

X6 480W Series

Data Sheet

The X6-480W series is 480W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules further increasing the energy savings and C O2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Power Level：480W	Current Range：1.00~10.00A	Surge：DM6KV, CM10KV
IP Rating：IP67	Dimming：0-10V/PWM/Timer

X6 600W Series

Data Sheet

The X6-600W series is 600W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac model, with high power factor, the highest conversion efficiency can reach 95%.Compliant with ERP2.0 standard, the maximum standby power consumption of remote shutdown is ≤500mW. This series of products is specially designed for high-power LED lighting such as plant lights, high pole lights, stadium lights, etc. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightning surge, brown out,output over voltage, short circuit, auto constant power and over temperature, to ensure the high reliability of the product.

Power Level：600W	Current Range：0.18~12.50A	Surge：DM6KV, CM10KV
IP Rating：IP67	Dimming：0-10V/PWM/Timer

X6 680W Series

Data Sheet

The X6-680W series is 680W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 108~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. X6 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.

Power Level：680W	Current Range：1.50~15.00A	Surge：DM6KV, CM10KV
IP Rating：IP67	Dimming：0-10V/PWM/Timer

X6H 800W Series

Data Sheet

The X6H-800W series is 800W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 230~480Vac. Offline monitored by dimming cable connected with a USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. The X6H-800W series provides built-in timer dimming schedules, further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enable the driver to operate with high reliability and extend product lifetime. Overall protection is provided against lightning surge, output over-voltage, short circuit, and over-temperature to ensure low failure rate.

Power Level：800W	Current Range：0.45~4.45A	Surge：DM6KV, CM10KV
IP Rating：IP67	Dimming：0-10V/PWM/Timer
