P1 320W Series
The P1-320W series is 320W plant Lighting offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 108~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：320W |
Current Range：0.625~6.25A |
Surge：DM5KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P1 400W Series
The P1 series is plant Lighting offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 108~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：400W |
Current Range：0.84~8.33A |
Surge：DM4KV, CM6KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P1 600W Series
The P1 series is plant Lighting offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 108~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：600W |
Current Range：1.17~11.70A |
Surge：DM5KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P1 680W Series
The P1 series is plant Lighting offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 108~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：680W |
Current Range：0.29~14.17A |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P1 800W Series
The P1 series is plant Lighting offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 108~305Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock.The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：800W |
Current Range：0.45~16.67A |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P1H 320W Series
The P1H series is outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 277~480Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1H-680W provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：320W |
Current Range：0.625~6.25A |
Surge：DM5KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P1H 600W Series
The P1H series is outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 277~480Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1H-680W provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：600W |
Current Range：1.17~11.7A |
Surge：DM4KV, CM6KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P1H 680W Series
The P1H series is outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 277~480Vac model. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P1H-680W provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enables the driver to operating with high reliability, and extending product lifetime. Overall protection is provided against lightening surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：680W |
Current Range：0.29~2.84A |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P6H 400W Series
P6H-400W series is specially designed for industrial lighting applications. It is constant current LED driver that operates from 220-400Vac with 0-10V and PWM dimming function. This Rectangle integrated structure enables it to have a better heat dissipation cooler, significantly improving reliability and extending product life. To ensure trouble free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
|
Power Level：400W |
Current Range：0.12~1.40A |
Surge：DM4KV, CM6KV |
|
IP Rating：IP20 |
Dimming：0-10V/PWM/Res |

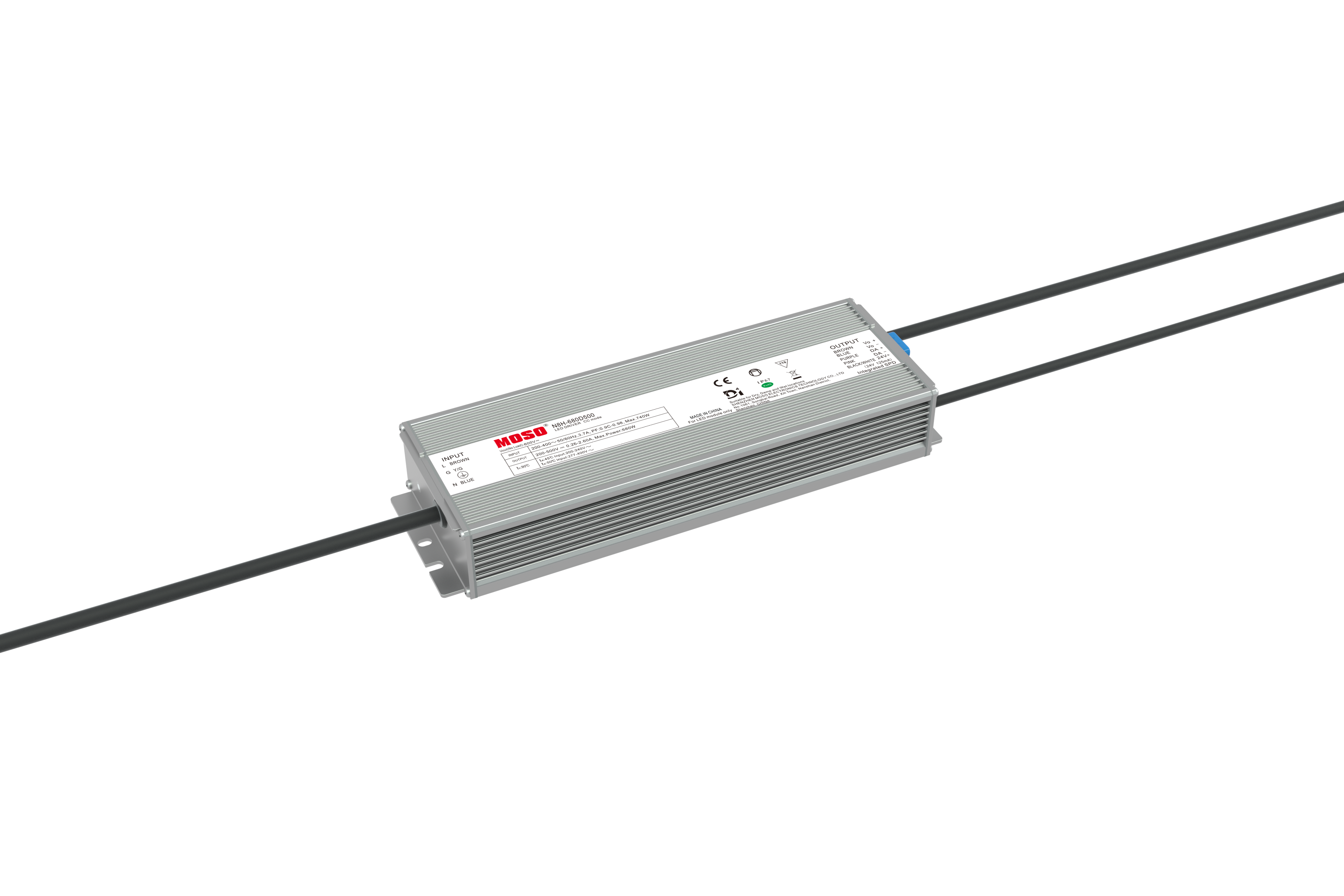

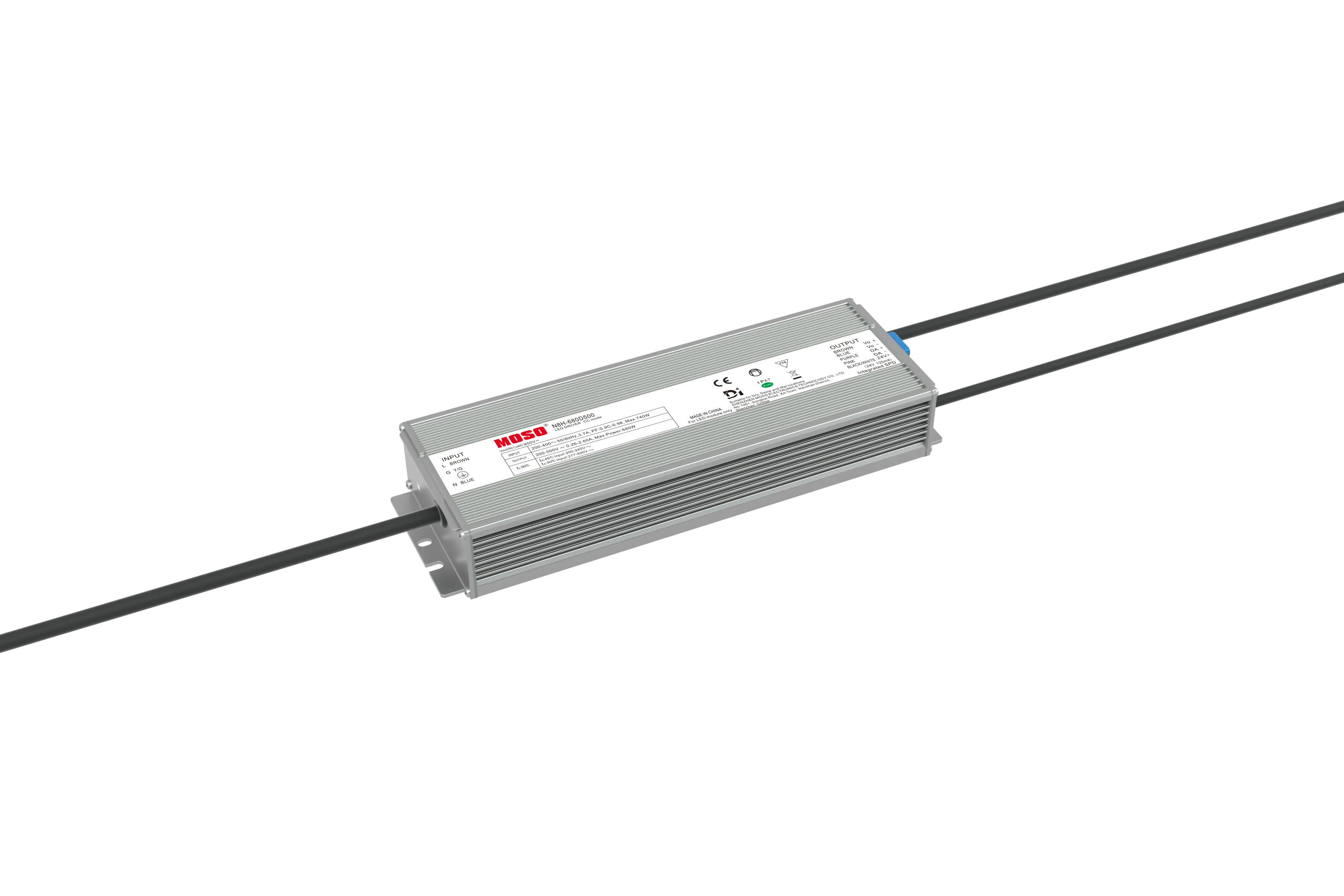

N8H 680W Series
The N8H series is a non-isolated constant power drive power supply with a high power factor. This series of products is specially designed for industrial lighting. It features multiple dimming functions such as 0-10V/PWM/resistor dimming (+12V auxiliary source). With high efficiency and a simple metal casing design, the product features excellent heat dissipation performance. It also has lightning protection, overvoltage protection, short-circuit protection and over-temperature protection, ensuring high reliability of the product.
|
Power Level：680W |
Current Range：(1.36~2.60A) |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Res./Time |
N8H 500W Series
The N8H series is a non-isolated constant power drive power supply with a high power factor. This series of products is specially designed for industrial lighting. It features multiple dimming functions such as 0-10V/PWM/resistor dimming (+12V auxiliary source). With high efficiency and a simple metal casing design, the product features excellent heat dissipation performance. It also has lightning protection, overvoltage protection, short-circuit protection and over-temperature protection, ensuring high reliability of the product.
|
Power Level：500W |
Current Range：(1.00~1.90A) |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Res./Time |

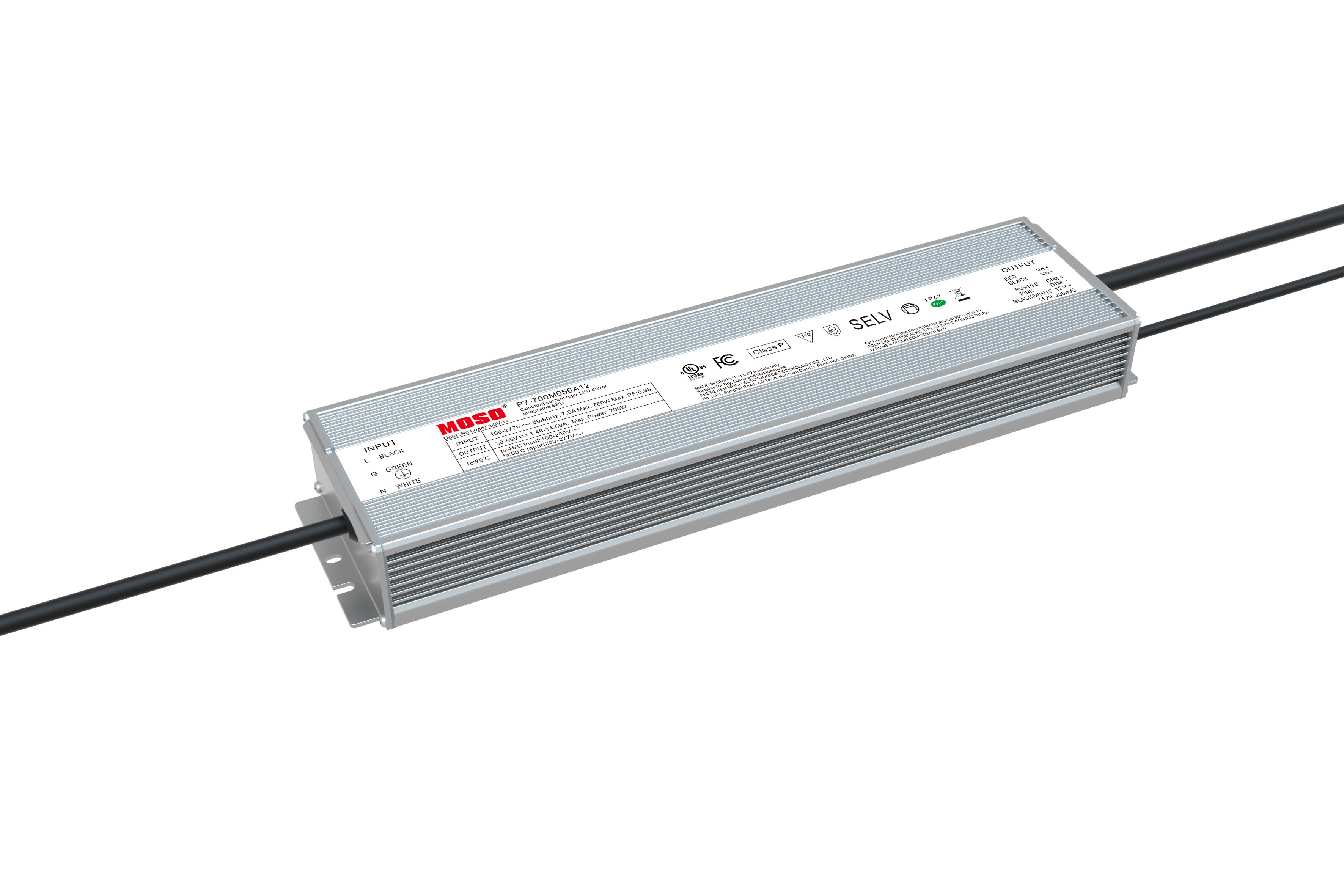

P7 700W Series
The P7-700W series is 700W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P7 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enable the driver to operate with high reliability, extending product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：700W |
Current Range：1.46~14.60A |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P7 1000W Series
The P7-1000W series is 1000W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P7 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enable the driver to operate with high reliability, extending product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：1000W |
Current Range：2.08~20.84A |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
P7 500W Series
The P7-500W series is 500W outdoor offline programmable LED driver that operates in constant current with high PF value and universal input voltage range 90~305Vac. Offline Monitored by dimming cable connected with an USB kit programming device, the fully programmed drivers offer all dimming, dim-to-off, constant lumen output options and a wide range of output current in a single driver, which deliver maximum flexibility with customized operating settings and intelligent control options for lighting manufacturers, as one driver can be programmed for many different luminaire designs. P7 provides built-in timer dimming schedules further increasing the energy savings and CO2 reductions achieved with LED lighting. It also helps clients to improve the management of logistics and stock. The compact metal case and high efficiency enable the driver to operate with high reliability, extending product lifetime. Overall protection is provided against lightning surge, output over voltage, short circuit, and over temperature, to ensure low failure rate.
|
Power Level：500W |
Current Range：1.05~10.50A |
Surge：DM6KV, CM10KV |
|
IP Rating：IP67 |
Dimming：0-10V/PWM/Timer |
